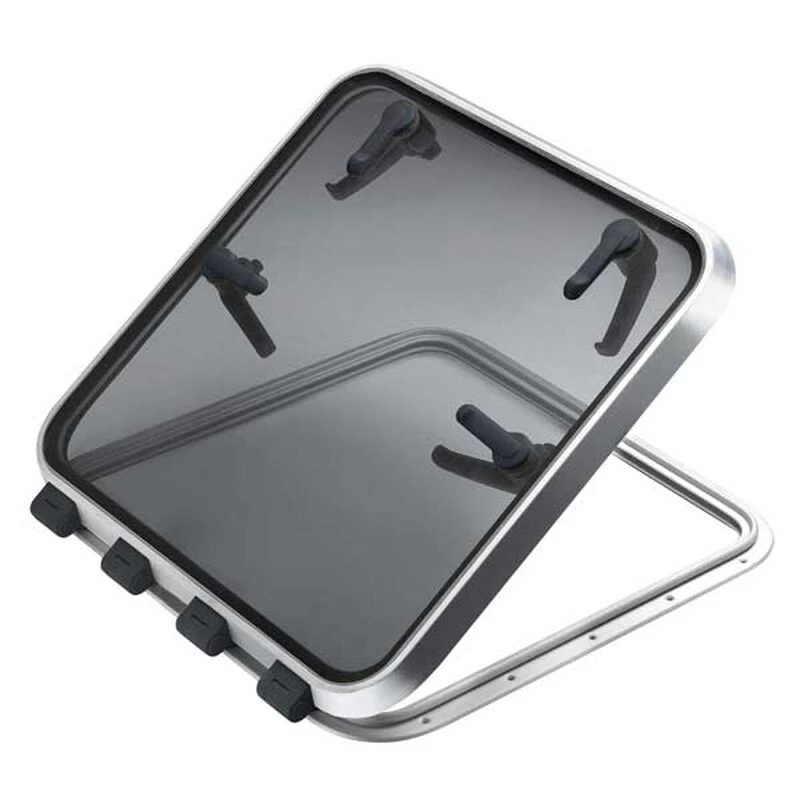

VETUS Magnus Heavy Duty Aluminum Hatches

Magnus Hatches are ocean-rated hatches with strong anodized aluminum frames and low external profile.

These heavy duty hatches are CE-certified AI, which means they are designed for ocean use and can be mounted in any part of the hull or deck.

Friction hinges keep the hatch open in any position without the need for stay arms. The hatch can be opened through 180 degrees and there are virtually no obstructions in the hatch opening. This makes the three larger sizes ideal for escape hatches.

The Magnus hatch can be opened from inside or outside the boat. They can also be left locked, either completely watertight or in a ventilation position. The frame profile is satin anodized aluminum. It protrudes 13/16″ (21mm) above the deck surface. The acrylic is 10mm (3/8″) thick and the color is dark smoke. An interior trim and screen are available separately for each hatch.

Key Features

• There are virtually no obstructions in hatch opening
• Hatch can be closed completely and locked watertight, or secured with narrow air gap for ventilation
• Magnus Heavy-Duty Hatches can be opened from inside or outside boat through a full 180°
• Friction hinges will keep the hatch open in any position without the need for stays
• Internal locking mechanism ensures that hatch cannot be opened from outside when boat is left unattended
• Low external profile of ensures that running rigging on sailboats will not foul on hatch handles
• Optional hatch trim with mosquito screen sold separately
• Three-year limited warranty
• CE classified A I, designed for ocean use and can be installed in any part of the hull or deck

Magnus Hatch Selection Chart

Style	Classification (CE)	Overall Dimensions	Cutout Size
2626	Ventilation	12-5/16″ x 12-5/16″ (312 x 312mm)	10-1/4″ x 10-1/4″ (260 x 260mm)
4242	Ventilation	18-11/16″ x 18-11/16″ (474 x 474mm)	16-9/16″ x 16-9/16″ (421 x 421mm)
4633	Ventilation	20-1/16″ x 14-15/16″ (509 x 379mm)	18″ x 12-7/8″ (457 x 327mm)
4747	Escape	20-9/16″ x 20-9/16″ (522 x 522mm)	18-1/2″ x 18-1/2″ (470 x 470mm)
5038	Ventilation	22″ x 16-13/16″ (559 x 429mm)	19-15/16″ x 14-13/16″ (507 x 377mm)
5151	Escape	22-3/16″ x 22-3/16″ (563 x 563mm)	19-15/16″ 19-15/16″ (507 x 507mm)
6363	Escape	26-3/4″ x 26-3/4″ (679 x 679mm)	24-11/16″ x 24-11/16″ (627 x 627mm)
