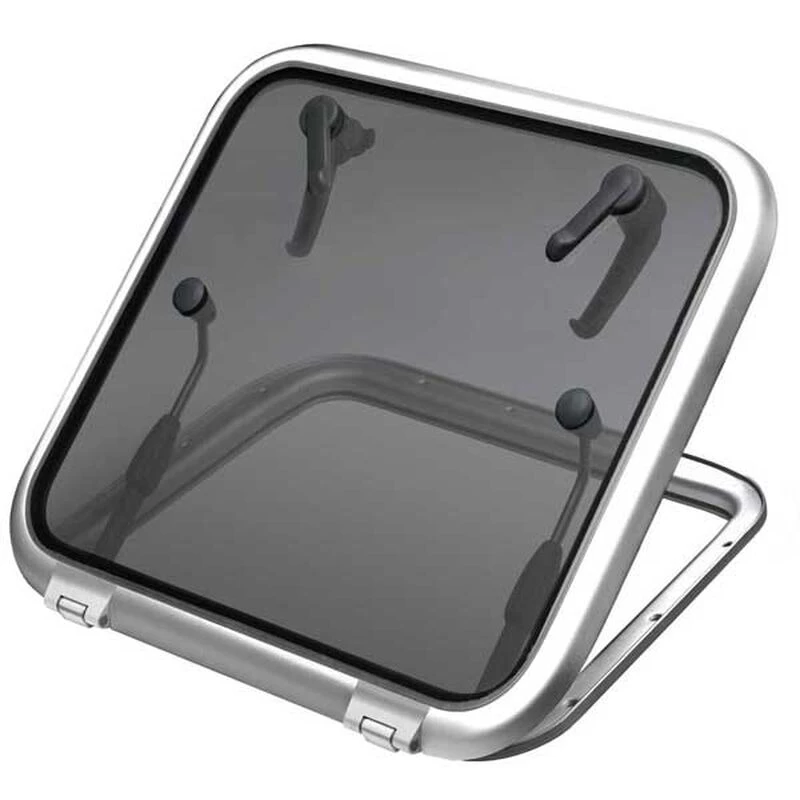

VETUS Altus Low Profile Aluminum Hatches

The Altus hatches are sturdy, ocean-rated low profile hatches that project only 13/16″ (21mm) above the deck.

They are CE classified A II, which  means they are designed for ocean use and can be fitted on deck. These hatches are provided with carefully designed hatch adjusters which are both stylish andeasy to operate.

The Altus hatch can be opened from inside or outside the boat. They can also be left locked–either completely watertight or in a ventilation position. The frame profile is satin anodized aluminum. The acrylic is 3/8″ thick and the color is dark smoke. An interior trim and screen are available separately for each hatch.

Key Features

• Can be opened from inside or outside boat to 120°
• Frame height above deck measures only 13/16″ (21 mm)
• Friction hinges keep hatch open in any position without the need for stays
• Easy-to-operate hatch adjusters allow lid to be held open at any angle through 90°
• Hatch can be closed completely and locked watertight, or secured with narrow air gap for ventilation

Altus Hatch Selection Chart



Style	Classification (CE)	Overall Dimensions	Cutout Size
2626	Ventilation	13-1/4″ x 13-1/4″ (334 mm x 334mm)	10-1/4″ x 10-1/4″ (260 x 260mm)
D420	“D” Shape Ventilation	19-5/16″ x 12-13/16″ (491 x 326mm)	16-7/16″ x 9-15/16″ (417 x 252mm)
4242	Ventilation	19-1/2″ x 19-1/2″ (495 x 495mm)	16-9/16″ x 16-9/16″ (421 x 421mm)
4633	Ventilation	20-7/8″ x 15-13/16″ (531 x 401mm)	18″ x 12-7/8″ (457 x 327mm)
4747	Escape	21 7/16″ x 21 7/16″ (544 x 544mm)	18-1/2″ x 18-1/2″ (470 x 470mm)
5038	Ventilation	22-7/8″ x 17-3/8″ (581 x 451mm)	19-15/16″ x 14-13/16″ (507 x 377mm)
5151	Escape	23-1/16″ x 23-1/16″ (585 x 585mm)	19-15/16″ 19-15/16″ (507 x 507mm)
D520	“D” Shape Escape	23-5/16″ x 20-5/8″ (592 x 524mm)	20-3/8″ x 17-11/16″ (518 x 450mm)
6363	Escape	27-5/8″ x 27-5/8″ (701 x 701mm)	24-11/16″ x 24-11/16″ (627 x 627mm)
R520	Round Escape	23-5/16″ Diameter (592mm)	20-3/8″ Diameter (518mm)
