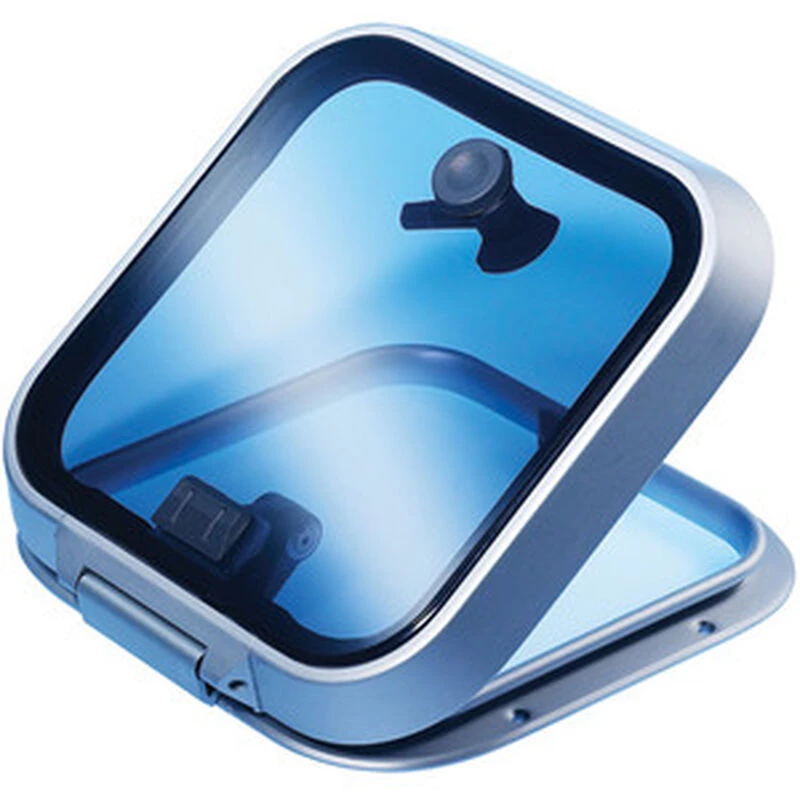

LEWMAR Ocean Series Hatches

Classic offshore hatch is installed onboard thousands of offshore boats around the world.

High-quality, durable hatches feature traditional high-profile styling with a bonded acrylic lens and external hinges. High lower-frame breakwater reduces the chance of water entering the boat when the hatch is open.

Ocean Series Hatches have 10mm thick acrylic lenses in sizes 10 to 40 and 12mm thick acrylic lenses in sizes 44 to 70 (other sizes available by Special Order). All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom)

Key Features

• A Flange Base has a 1″ flange that extends into the hatch opening.
• A Flat Base mounts to any flat surface, allowing installation over odd shaped openings.
• Ruggedly constructed with smoked gray acrylic lens and clear anodized-aluminum frame
• 10mm acrylic in sizes 10–40; 12mm acrylic in sizes 44–70
• Latches: Sizes 30 and larger have lockable internal and external handles for added security
• Hinges: Friction levers, hold position up to 95° angle
• Included Accessories: None (Trim and Screen Kits sold separately.)
• Warranty: Three years

Note: Ocean Series hatches are available in additional variations. Please contact our Special Order department for your particular needs .

Ocean Series Hatch Selection Chart

Hatch Size	Flat Base Cutout Size (L x W)	Flange Base Cutout Size (L x W)	Overall (L x W x H)	Corner Radii
Ocean 00	N/A	8 1/8″ x 8 1/8″	10 3/16″ x 10 3/16″	2 11/16″
Ocean 10	10 1/16″ x 10 1/16″	10 1/4″ x 10 1/4″	12 3/4″ x 12 3/4″ x 1 9/16″	2 15/16″
Ocean 20	7 3/4″ x 13 7/16″	7 15/16″ x 13 11/16″	10 1/2″ x 16 3/16″ x 1 9/16″	2 11/16″
Ocean 30	12 11/16″ x 17 13/16″	12 7/8″ x 18″	15 3/8″ x 20 3/8″ x 1 9/16″	2 15/16″
Ocean 40	16 3/8″ x 16 3/8″	16 9/16″ x 16 9/16″	19 1/8″ x 19 1/8″ 1 11/16″	2 15/16″
Ocean 44	17 3/16″ x 17 3/16″	17 3/8″ x 17 3/8″	20 1/16″ x 20 1/16″ x 1 1/16″	3″
Ocean 50	14 5/8″ x 19 3/4″	15 7/16″ x 19 15/16″	17 1/2″ x 22 5/8″ x 1 11/16″	3″
Ocean 54	N/A	15 7/16″ x 19 15/16″	18 1/16″ x 22 5/8″ x 1 11/16″	3″
Ocean 60	19 3/4″ x 19 3/4″	19 15/16″ x 19 15/16″	22 5/8″ x 22 5/8″ x 1 11/16″	3″
Ocean 65 Trapezoid	15 7/8″-20 5/8″ x 15 15/16″	15 7/8″-20 5/8″ x 15 15/16″	22 11/16″-26 9/16″ x 22 11/16″	3″
Ocean 70	24 1/2″ x 24 1/2″	24 11/16″ x 24 11/16″	27 5/16″ x 27 5/16″ x 1 11/16″	3″
