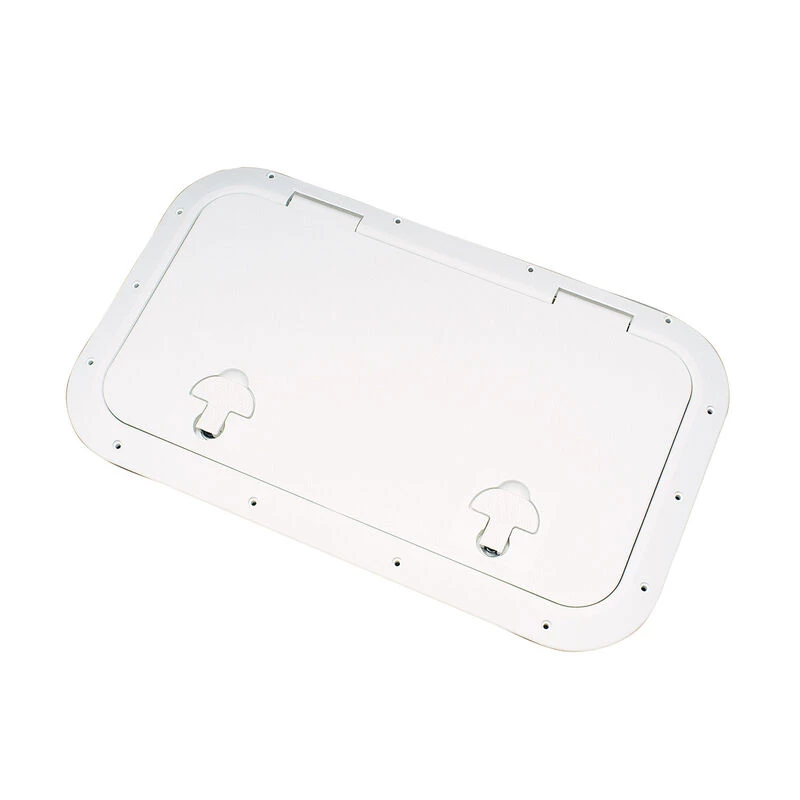

BOMAR Inspection Hatches

Install these hatches for thru-bulkhead/below-deck access or in center consoles.

High-impact, UV-stabilized resin with stainless steel hinge pins make these hatches tough. Their design makes it easy to gain access to below deck areas or create valuable storage space in center consoles or vertical bulkheads. Large T-handle for easy operation and molded non-slip surfaces.

Key Features

• Two color choices: White or Black
• Molded low profile design for nearly flush mounting
• Fold-up T-handle latches for easy operation
• Stainless steel hinge pins
• UV stabilized polypropylene
• Non-skid surface
• 90° non-locking hinges
• Installation hardware required: #10 SS Pan Head fasteners (sold separately)

Inspection Hatch Selection Chart

Hatch No.	I.D. Opening	Cutout Size	Overall Size	Corner Radii
8711	7″ x 11″	8-3⁄16″ x 12-3⁄16″	10-1⁄4″ x 14-1⁄4″	2″
8812	8-1⁄2″ x 11-3⁄8″	10-3⁄4″ x 12-15⁄16″	12-1⁄2″x 15-1⁄2″	2-1⁄2″
81020	9-3⁄4″ x 19-1⁄2″	12-1⁄8″ x 21-1⁄8″	13-3⁄4″ x 23-1⁄2″	4-1⁄2″
81618	14″ x 16″	16-1⁄4″ x 17-5⁄8″	18-1⁄8″ x 20-3⁄16″	5″
81030	9-3⁄4″ x 26-3⁄4″	11-3⁄8″ x 28-3⁄8″	14″ x 31″	6″
